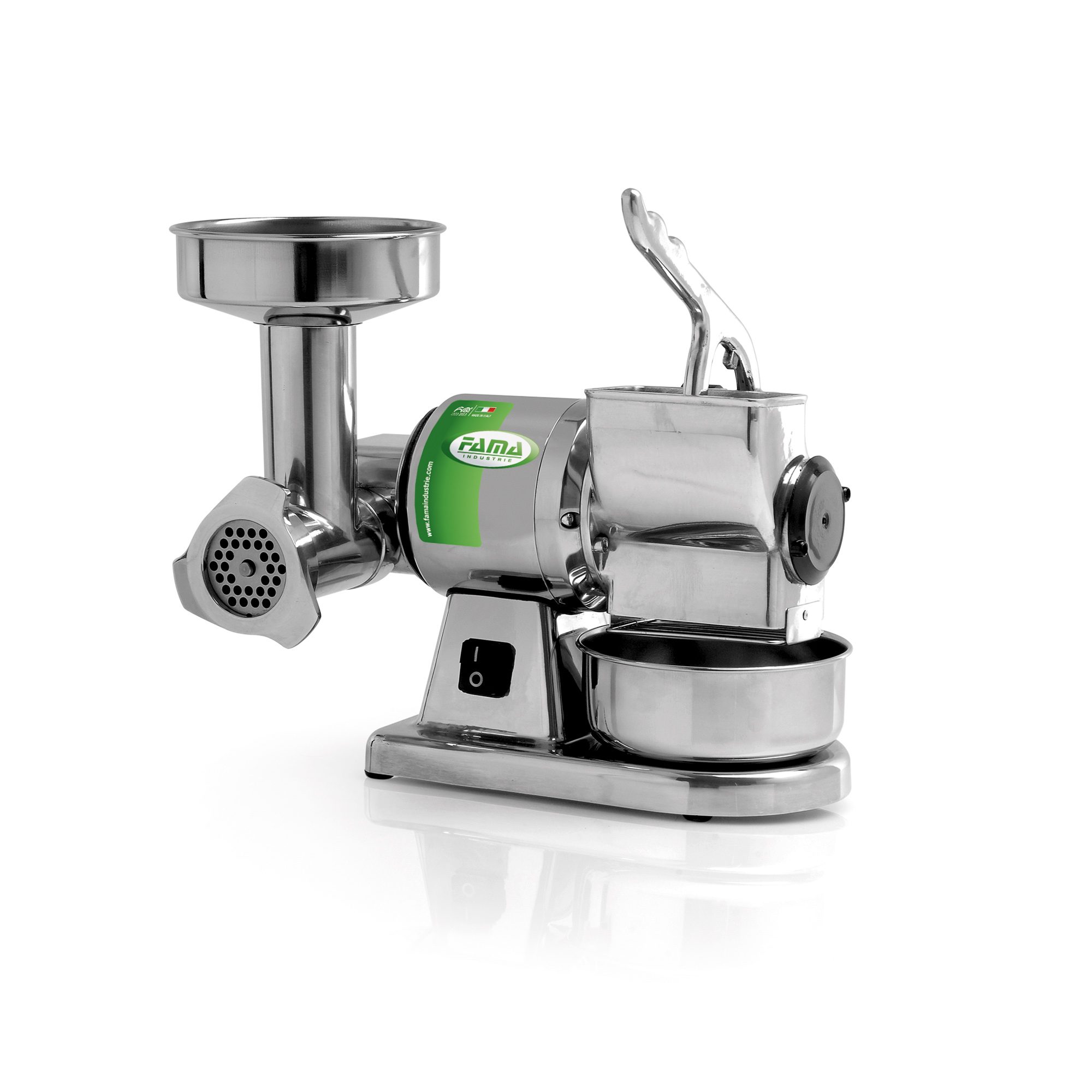

TG8
โข Professional equipment
โข Made from pressure die cast aluminium alloy
โข Elegant stainless steel motor cover band
โข Speed reducer with oil immersed gears
โข Italian make asynchronous motor
โข Thermal protection
โข Easy-removable โENTERPRISEโ mincing unit available in: Anodized aluminium / AISI 304 stainless steel
โข Stainless steel self-sharpening draw-plates included
โข Stainless steel tray and hopper
โข Stainless steel grating roll plated with nikel electroless
โข AISI 304 roll option is also available
โข Stainless steel cheese bowl
โข Safety Stainless steel protection grid placed at the bottom of the grating mouth
โข Safety micro switch placed on the mouth inlet
โข ABS pestle
โข 24 volt controls
โข CE approved
โข Proudly Made in Italy
Technical sheet
Power (Kwatt/Hp) | 0,38 (0,50) |
Power supply (Volt/Hz) | 230/50 |
Grater (RPM) | 1400 |
Mincing Groups | inox / alluminio |
Meat mincer (RPM) | 80 |
Standard plate (mm) | รธ6 |
Grater Mouth (mm) | 110x65 |
Meat mincer Mouth (mm) | รธ60 |
Grater production per hour (kg) | 30 |
Meat mincer production per hour (kg) | 15 |
Gross weight single phase (Kg) | 11,0 |
Net weight single phase (kg) | 10,0 |
Packaging dimensions (mm) | B. 300 D. 390 H. 370 |
Dimensions (mm) | B. 260 D. 380 H. 360 |
